The story regarding the repair to the LH mirror is here:
http://www.clubscuderia.co.uk/forum/showthread.php?t=5116
http://www.clubscuderia.co.uk/forum/showthread.php?t=5116
Club Scuderia
This is a sample guest message. Register a free account today to become a member! Once signed in, you'll be able to participate on this site by adding your own topics and posts, as well as connect with other members through your own private inbox!
-
Please take a minute to read this thread about our recent server issues and forum platform Switch
355 Door Removal and Refurbishment
- Thread starter Terry
- Start date
Terry
Active member

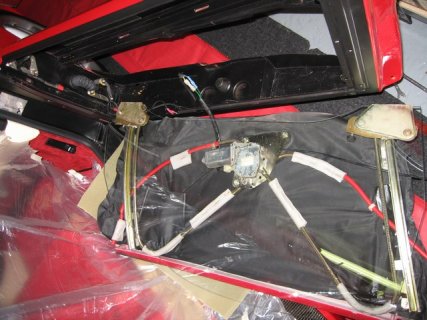

The window motor connected and the glass fitted ready to lift the frame into the door. The frame is inserted into the top of the door first then slides down into place.
I did not tighten the glass attachment bolts until the glass was adjusted into the correct location before attempting to close the door.
I did not tighten the glass attachment bolts until the glass was adjusted into the correct location before attempting to close the door.
Attachments
Terry
Active member

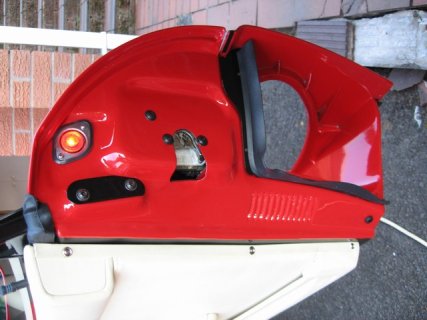

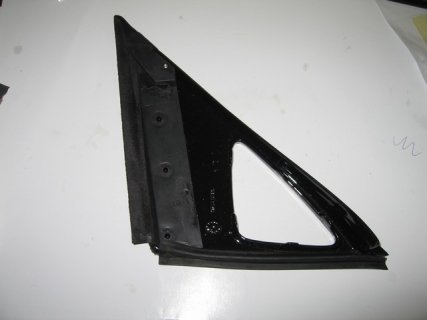

Seals attached to the inner face of the mirror plate. I used a few dabs of 30 minute epoxy to hold the seals in place prior to fitting.
View attachment 83037

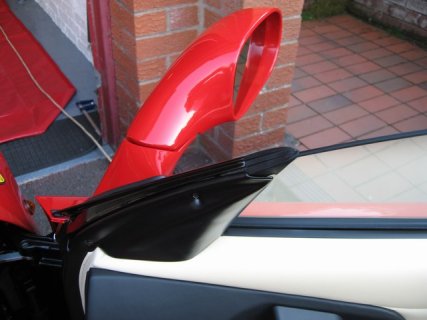

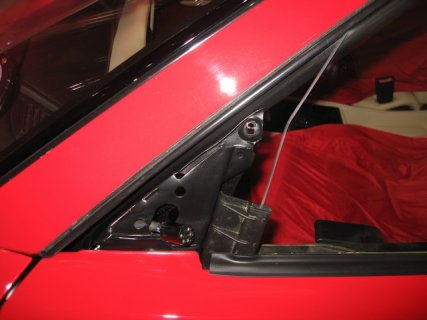

Door ready to refit rear view mirror with support plate.
View attachment 83035
Back together and adjusted. BTW, I made sure the mirror was functioning correctly before fitting the glass and re-installing the mirror.
View attachment 83036
View attachment 83037
Door ready to refit rear view mirror with support plate.
View attachment 83035
Back together and adjusted. BTW, I made sure the mirror was functioning correctly before fitting the glass and re-installing the mirror.
View attachment 83036
Attachments
Terry
Active member

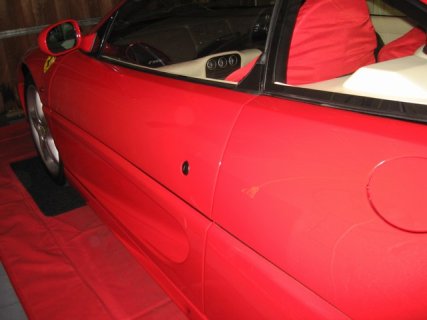

Refit the door trim and all done.
I started off intending to do one door at a time but did both together. Thought it would be all done in a couple of weeks but it took six.
The cost?
£800 on new parts from Ferrari UK. Those seals are not cheap.
£100 on powder coating.
£500 painting the doors.
I started off intending to do one door at a time but did both together. Thought it would be all done in a couple of weeks but it took six.
The cost?
£800 on new parts from Ferrari UK. Those seals are not cheap.
£100 on powder coating.
£500 painting the doors.
